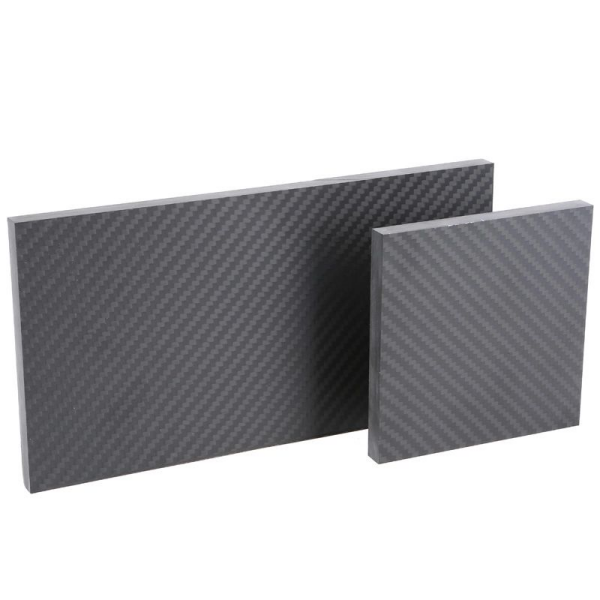

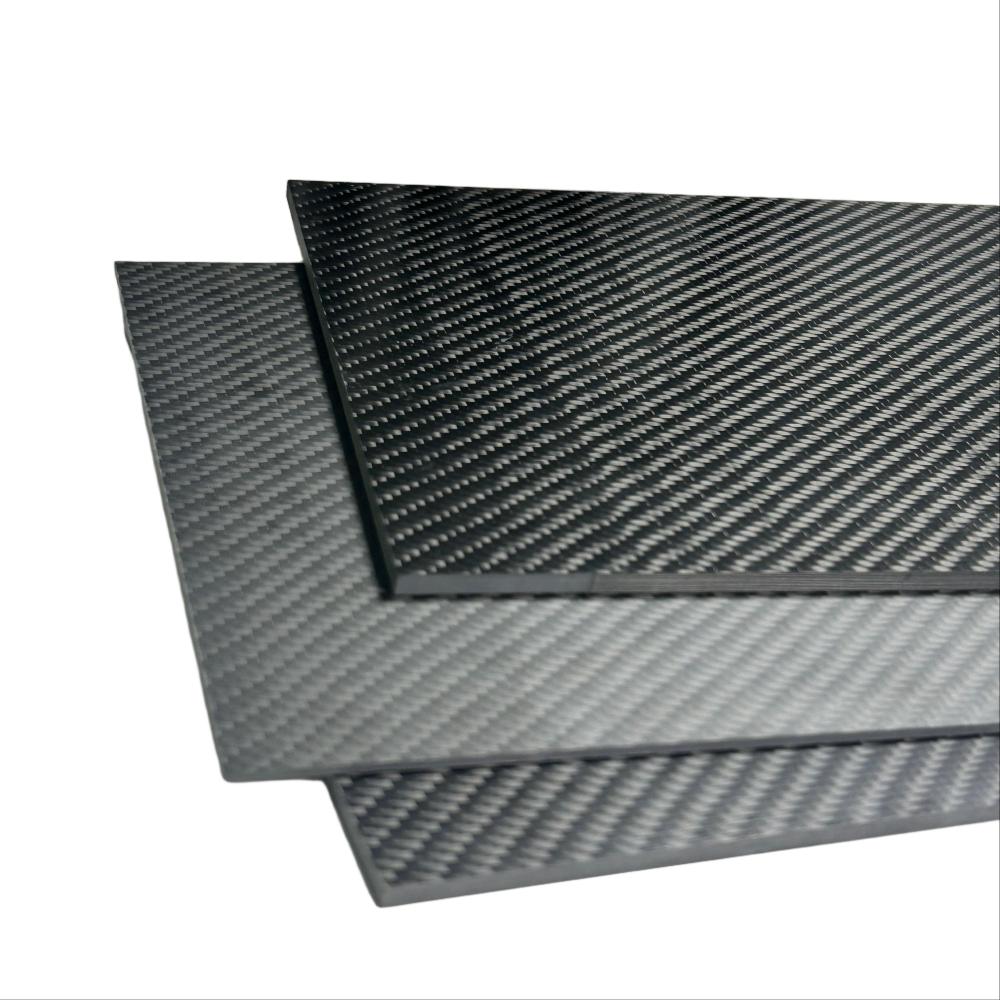

Premium 5mm thick 3K twill weave carbon fiber sheet with excellent strength-to-weight ratio, ideal for automotive, aerospace, and industrial applications. Custom CNC cutting available for precision fitment.
| Parameter | Value | Test Method |
|---|---|---|
| Material | 3K Twill Weave CF | ASTM D3171 |
| Thickness | 5mm (±0.1mm) | Digital Caliper |
| Panel Size | 1000mm x 500mm | ISO 2768-1 |
| Density | 1.55 g/cm³ | ASTM D792 |
| Tensile Strength | 500 MPa | ASTM D3039 |
| Flexural Strength | 600 MPa | ASTM D790 |
| Temperature Range | -50°C to +150°C | ASTM E831 |
| Surface Finish | Glossy/Matte | Visual Inspection |
Premium 5mm thick 3K twill weave carbon fiber sheet with excellent strength-to-weight ratio, ideal for automotive, aerospace, and industrial applications. Custom CNC cutting available for precision fitment.
