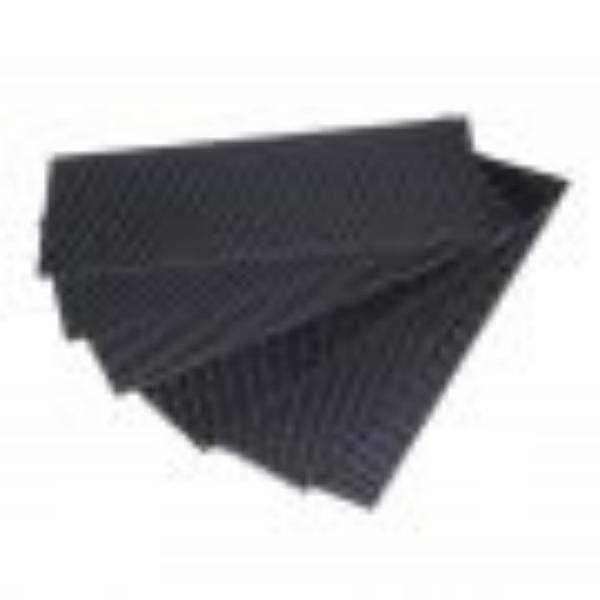

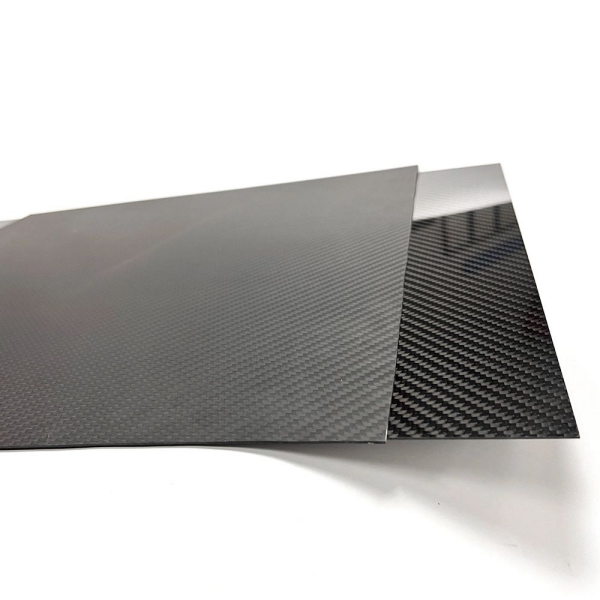

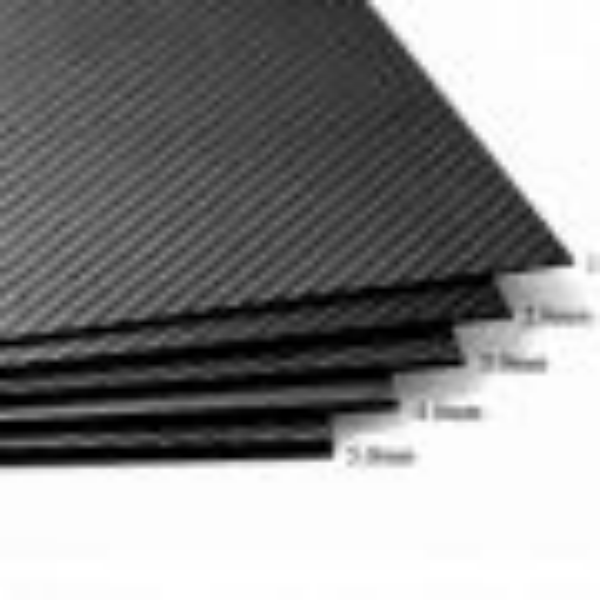

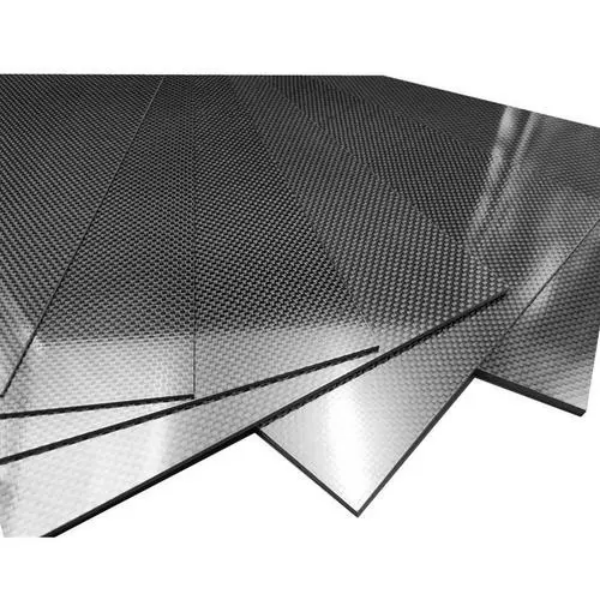

Certified fire-retardant carbon fiber sheets designed for applications where fire safety is paramount. These sheets meet stringent aviation and rail standards while maintaining the strength and lightweight advantages of carbon fiber. The proprietary resin system prevents dripping and maintains structural integrity during fire exposure. Ideal for mass transit interiors, aircraft components, and industrial enclosures. Includes complete fire test certification documentation.
| Parameter | Specification | Test Method |
|---|---|---|
| Fire Rating | UL94 V0 | UL 94 |
| Flame Spread Index | 5 | ASTM E84 |
| Smoke Density | <50 | ASTM E662 |
| Toxicity | FAR 25.853 Compliant | ABD0031 |
| Thickness Options | 1mm-10mm (±0.05mm) | Digital Caliper |
| Continuous Service Temp | 200°C | ASTM E831 |
| Peak Temperature | 500°C (short term) | ASTM E831 |
| Thermal Conductivity | 1.2 W/m·K | ASTM E1461 |
| Dielectric Strength | 15 kV/mm | ASTM D149 |
| Surface Resistivity | 10⁶ Ω/sq | ASTM D257 |
| Panel Sizes | 1000×500mm to 2000×1000mm | ISO 2768-1 |
Ultra-high-performance ballistic carbon fiber panels engineered to stop rifle rounds while being 40% lighter than steel armor. The proprietary fiber architecture combines UHMWPE and carbon fiber for optimal energy absorption. Used in military vehicles, VIP protection, and secure facilities. Each batch undergoes live fire testing with full certification.
