Brand Name
Antcarbon
Customized Size
400*500mm;500*500mm;500*600mm,500*1000mm,1000*1200mm,1200*1500mm
Thickness
0.3mm - 50mm (Custom Sizes Supported);
Surface Weave
Plain, Twill, Unidirectional;
Surface
Glossy, Matte, Anti-Static Coating;
Tensile Strength
3500 MPa (Higher Grades Available);
Density
1.55 g/cm³ (40% Lighter than Aluminum, 70% Lighter than Steel);
Modulus
230 GPa (Ultra-High Rigidity, Deformation Resistance);Corrosion, UV & Chemical Resistance;
Operating Temperature
-50°C to +150°C;
Application
The 3K carbon fiber board boasts extremely high strength and extremely light weight. It has a shiny and clear appearance and is widely used in market segments such as model helicopter components and FPV Drone Frame.

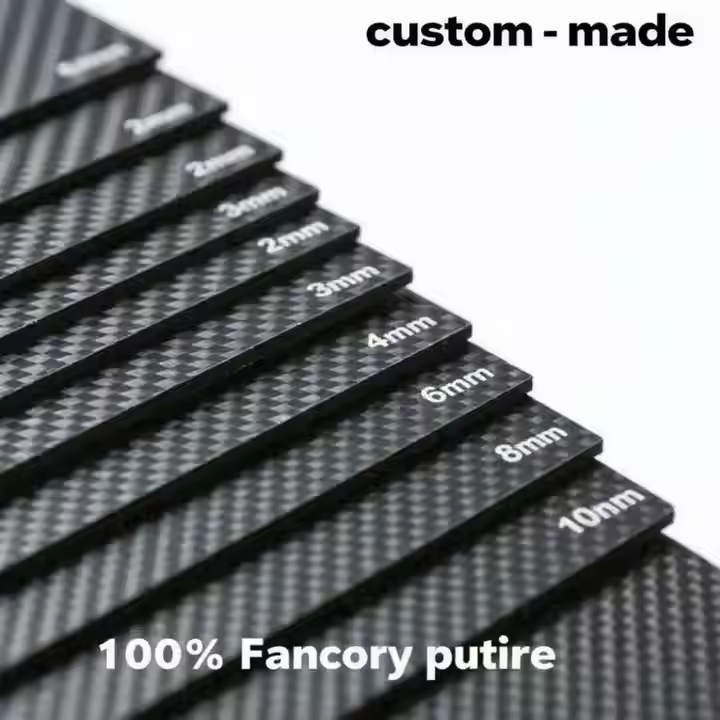

It can be made with pure carbon fiber or with a glass fiber core covered by carbon fiber on the surface. The thickness ranges from 0.2 millimeters to 10 millimeters and can be customized in terms of thickn
| Parameter | Specifications |
|---|---|
| Brand Name | Antcarbon |
| Customized Size (mm) | 400×500, 500×500, 500×600, 500×1000, 1000×1200, 1200×1500 (Custom Sizes Supported) |
| Thickness (mm) | 0.3 - 50 (Custom Sizes Supported) |
| Surface Weave | Plain, Twill, Unidirectional |
| Surface Finish | Glossy, Matte, Anti-Static Coating |
| Tensile Strength | 3500 MPa (Higher Grades Available) |
| Density (g/cm³) | 1.55 (40% Lighter than Aluminum, 70% Lighter than Steel) |
| Modulus (GPa) | 230 (Ultra-High Rigidity, Deformation Resistance) |
| Corrosion/UV/Chemical Resistance | Yes |
| Operating Temperature | -50°C to +150°C |
| Application | Model helicopter components, FPV Drone Frame, etc. |
| Core Options | Pure carbon fiber or glass fiber core with carbon fiber surface |
