Brand Name
Antcarbon
Customized Size
400*500mm;500*500mm;500*600mm,500*1000mm,1000*1200mm,1200*1500mm
Thickness

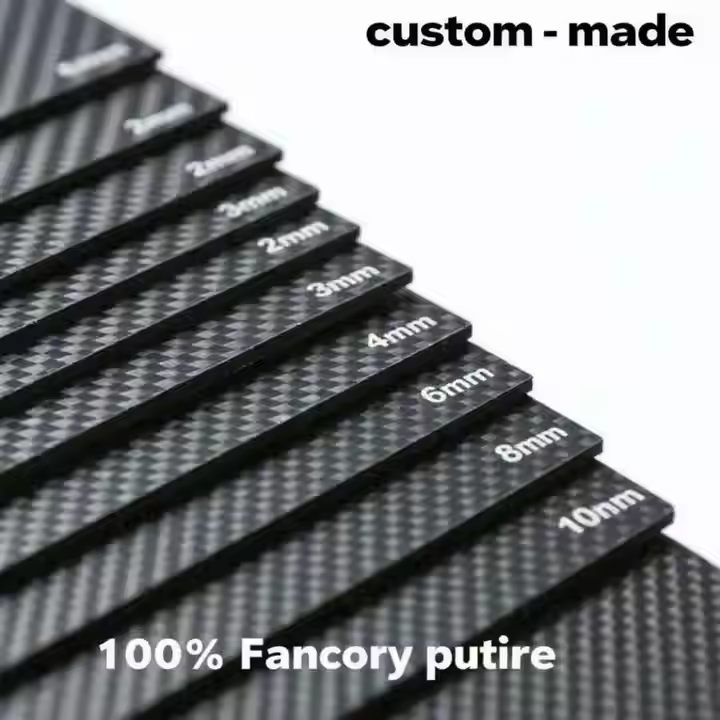

0.3mm - 50mm (Custom Sizes Supported);

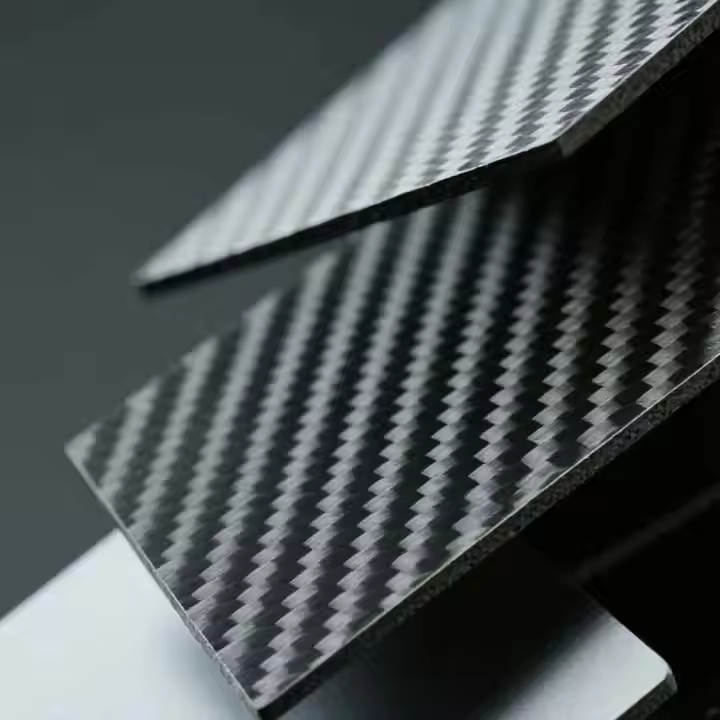

Surface Weave
Plain, Twill, Unidirectional;
Surface
Glossy, Matte, Anti-Static Coating;
Tensile Strength
3500 MPa (Higher Grades Available);
Density
1.55 g/cm³ (40% Lighter than Aluminum, 70% Lighter than Steel);
Modulus
230 GPa (Ultra-High Rigidity, Deformation Resistance);Corrosion, UV & Chemical Resistance;
Operating Temperature
-50°C to +150°C;
Application

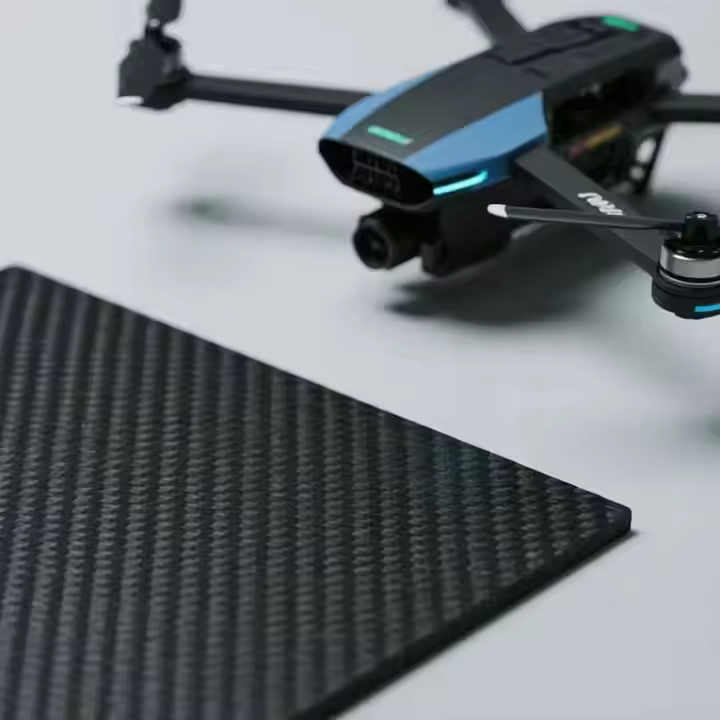

The 3K carbon fiber board boasts extremely high strength and extremely light weight. It has a shiny and clear appearance and is widely used in market segments such as model helicopter components and FPV Drone Frame.
It can be made with pure carbon fiber or with a glass fiber core covered by carbon fiber on the surface. The thickness ranges from 0.2 millimeters to 10 millimeters and can be customized in terms of thickn
| Parameter | Specification | Options/Notes |
|---|---|---|
| Product Name | Antcarbon 3K Carbon Fiber Board | |
| Standard Sizes | 400×500mm, 500×500mm, 500×600mm | Custom sizes available |
| 500×1000mm, 1000×1200mm, 1200×1500mm | ||
| Thickness Range | 0.3mm - 50mm | Custom thickness available (0.2-10mm special orders) |
| Weave Patterns | Plain, Twill, Unidirectional | |
| Surface Finishes | Glossy, Matte, Anti-static coating | |
| Tensile Strength | 3500 MPa | Higher grades available |
| Density | 1.55 g/cm³ | 40% lighter than aluminum |
| 70% lighter than steel | ||
| Elastic Modulus | 230 GPa | Ultra-high rigidity |
| Environmental Resistance | Corrosion, UV, Chemical resistant | |
| Operating Temperature | -50°C to +150°C | |
| Core Options | Pure carbon fiber | |
| Hybrid (fiberglass core + carbon fiber surface) | ||
| Key Applications | • UAV/Drone frames | Ideal for high strength-to-weight ratio applications |
| • RC helicopter components | ||
| • Aerospace components | ||
| • High-performance industrial uses |
