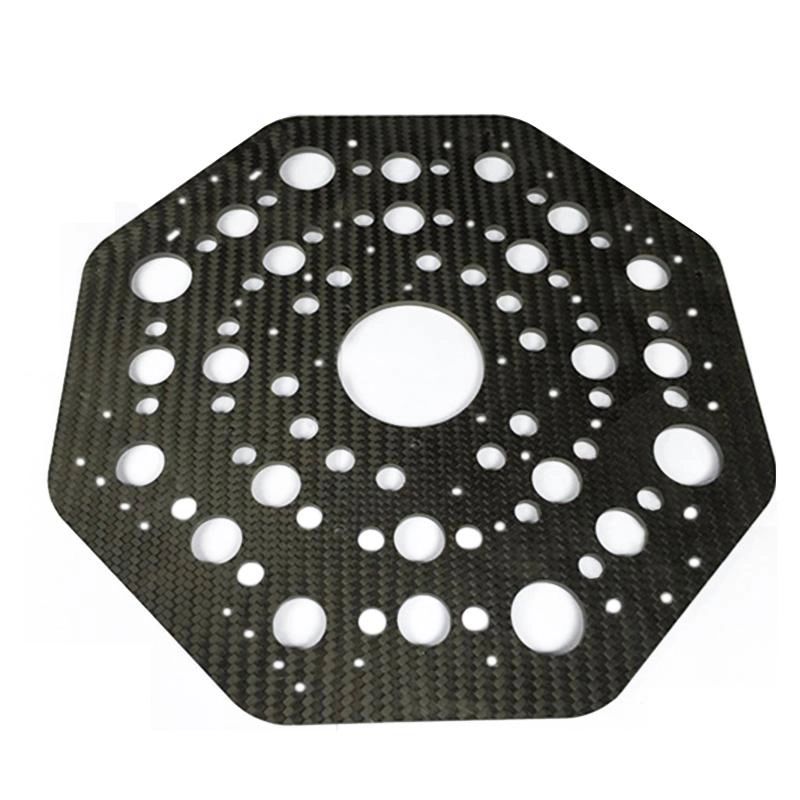

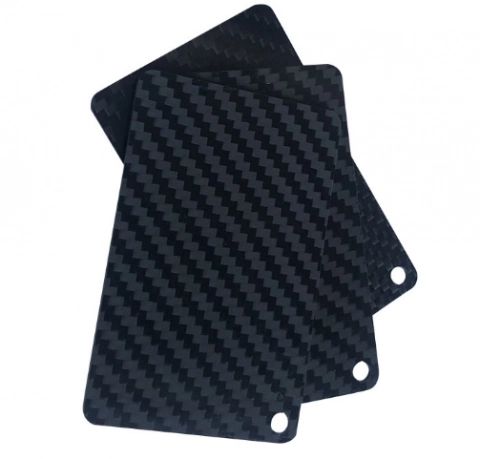

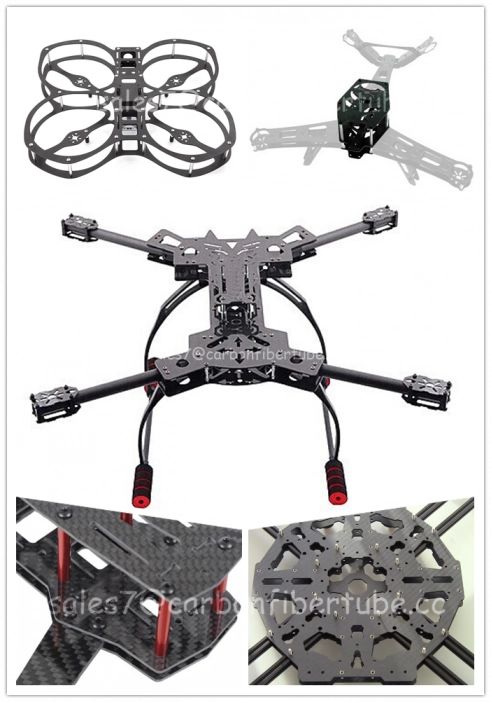

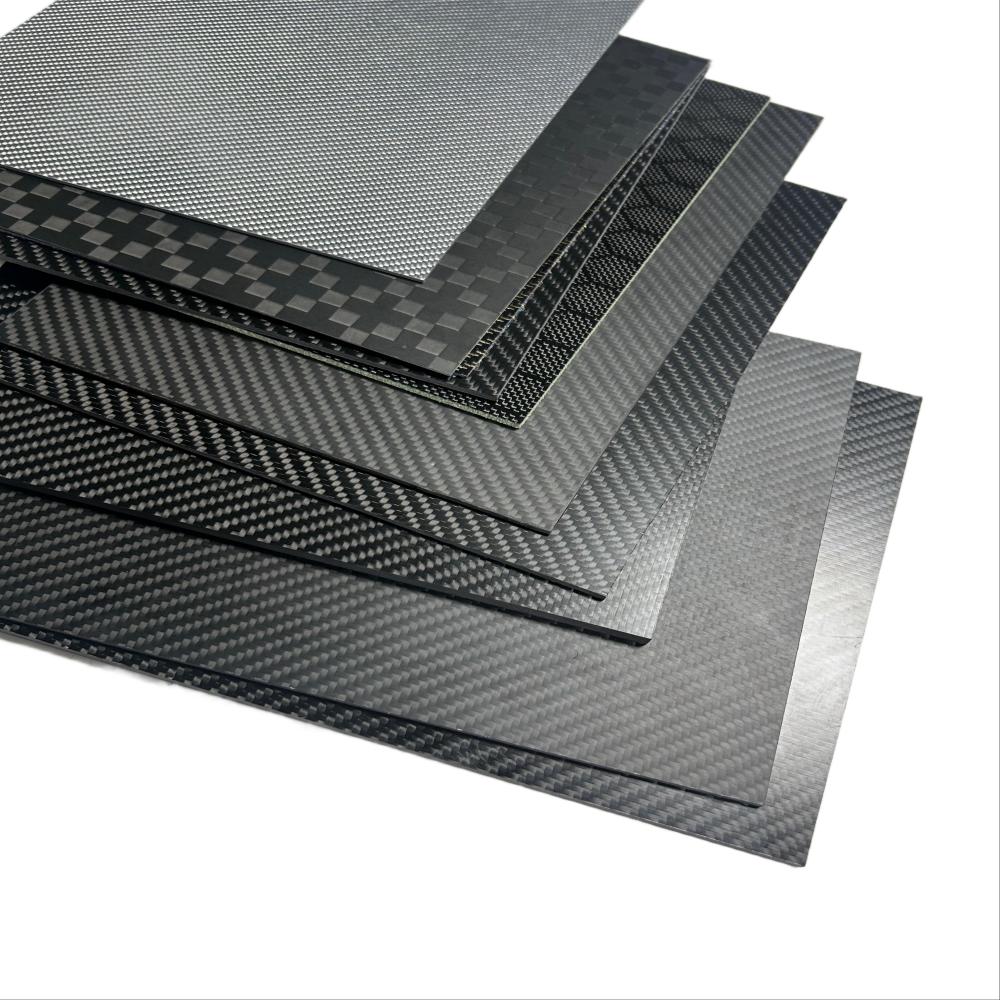

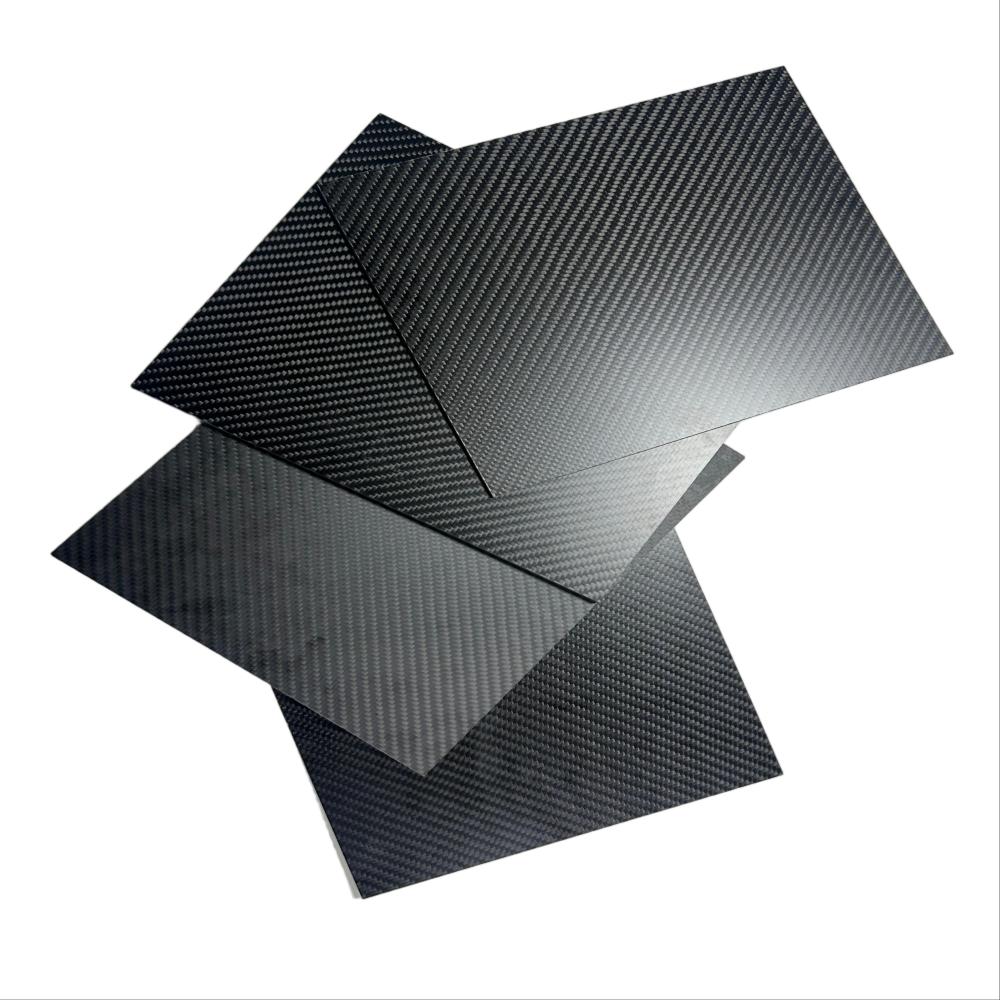

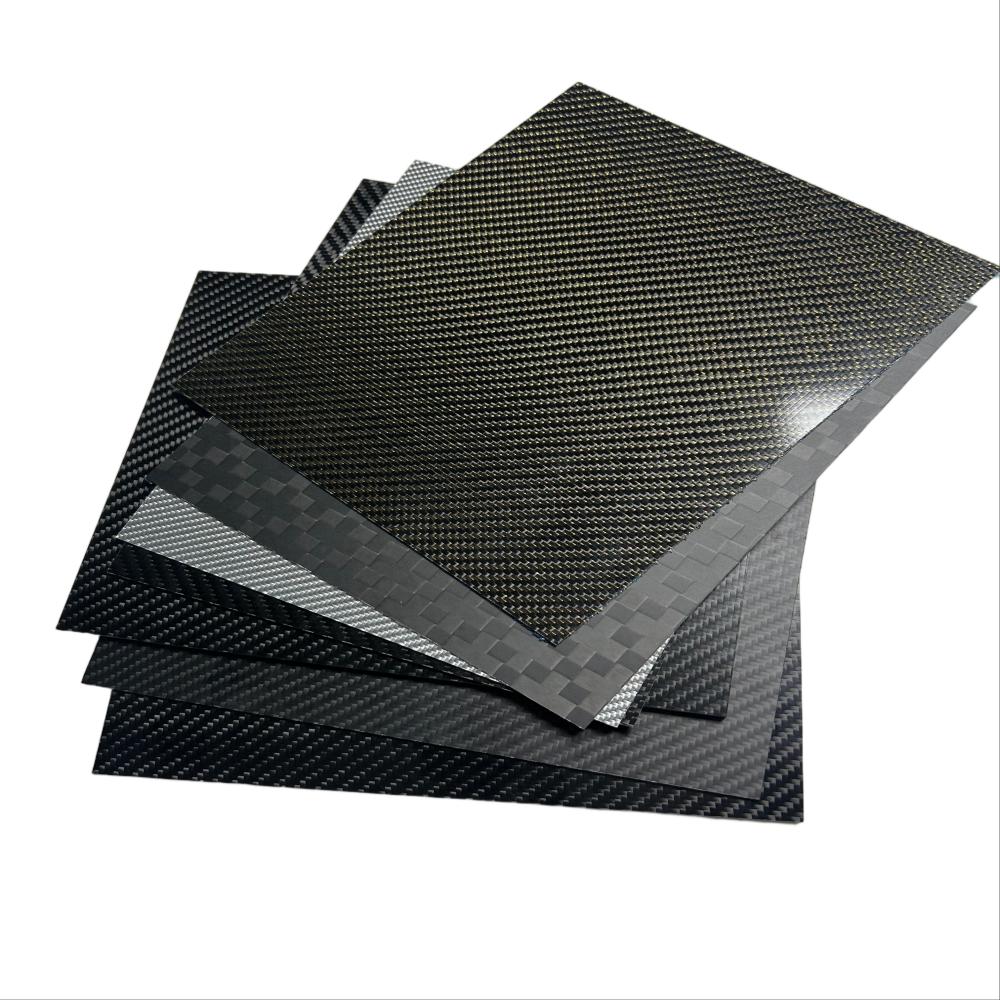

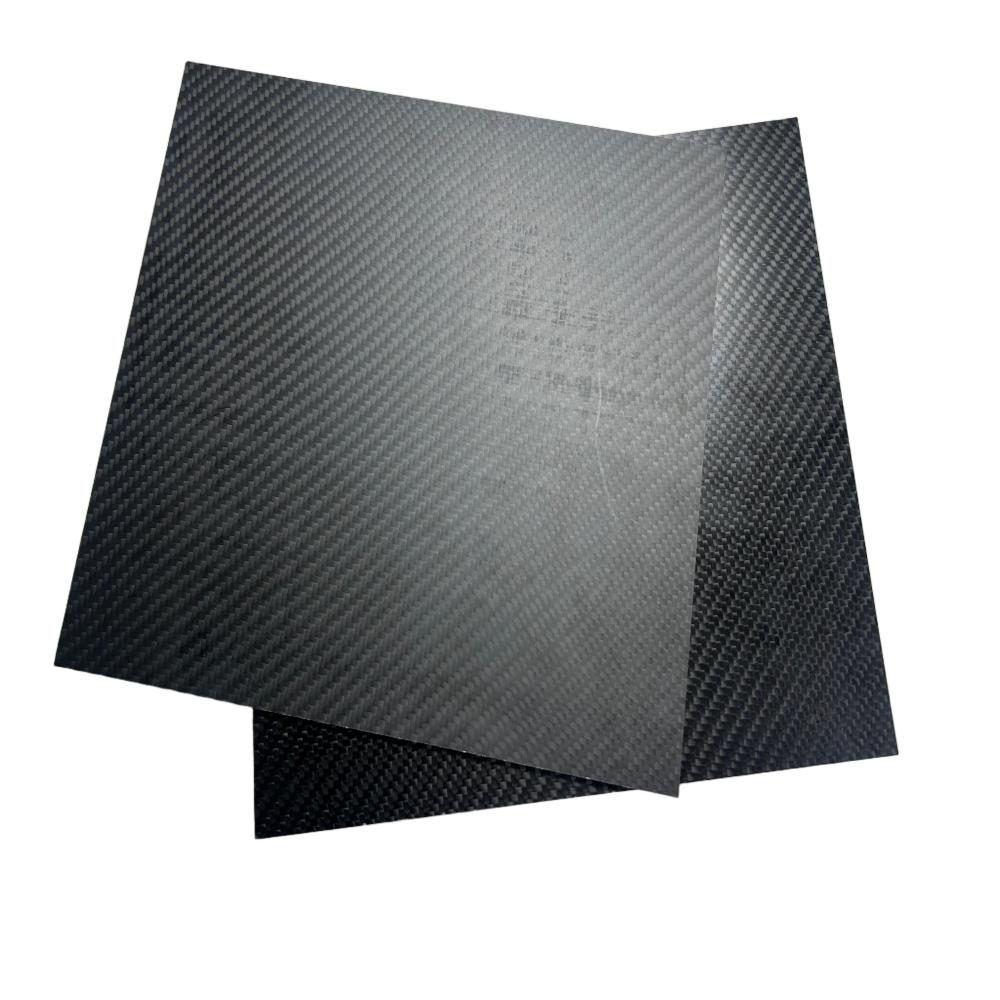

Our premium 3K twill carbon fiber sheets feature the classic diamond pattern that combines exceptional mechanical properties with aesthetic appeal. Manufactured using Toray T700 fibers and high-performance epoxy resin, these sheets deliver an outstanding strength-to-weight ratio. The balanced 45° fiber orientation provides uniform strength in all directions, making it ideal for structural components in drones, automotive parts, and industrial applications. Custom CNC cutting services ensure perfect fitment for your specific requirements. Each sheet undergoes rigorous quality control including ultrasonic testing for void content.
| Parameter | Specification | Test Method |
|---|---|---|
| Material Composition | Toray T700 3K Twill Weave | ASTM D3171 |
| Available Thicknesses | 1mm-20mm (±0.05mm) | ISO 2768-1 |
| Panel Sizes | 1000x500mm, 1200x600mm | - |
| Density | 1.55 g/cm³ | ASTM D792 |
| Tensile Strength | 500 MPa | ASTM D3039 |
| Flexural Strength | 600 MPa | ASTM D790 |
| Surface Finish | Glossy/Matte | Visual |
| Temperature Range | -60°C to +180°C | ASTM E831 |
Electrically conductive carbon fiber sheets providing exceptional EMI/RFI shielding performance. These sheets combine the lightweight properties of carbon fiber with metallic-level conductivity, making them perfect for electronics enclosures, satellite components, and medical imaging equipment. The unique fiber orientation creates a continuous conductive network while maintaining flexibility. Includes pressure-sensitive adhesive option for easy installation in tight spaces.
