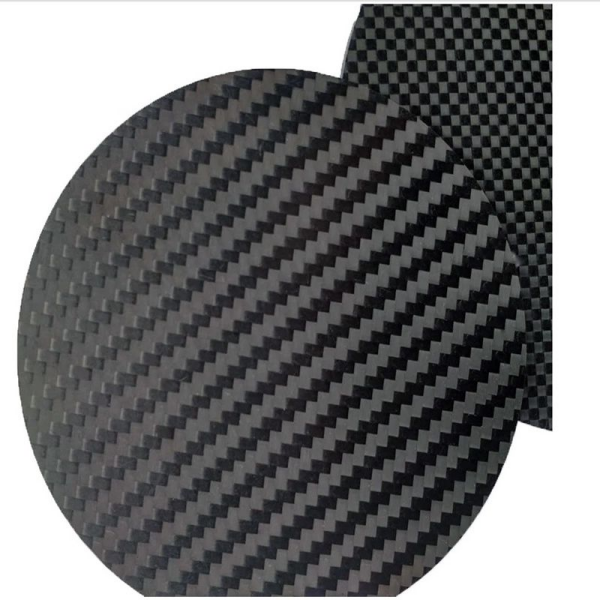

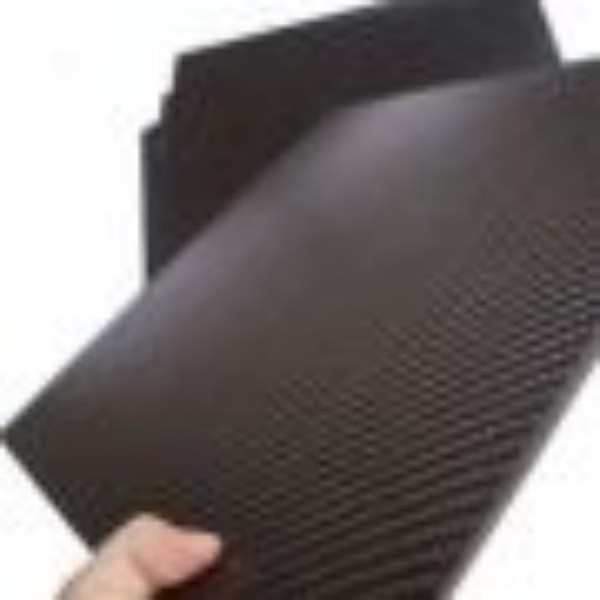

Our aerospace-grade 3K twill carbon fiber sheets offer the perfect balance of strength and aesthetics. The classic 2×2 twill weave provides excellent mechanical properties while creating the distinctive carbon fiber look. These sheets undergo rigorous quality control to ensure consistent thickness and fiber alignment. Ideal for visible components in automotive, marine, and industrial applications where both performance and appearance matter. Custom cutting services available with precision CNC routing for perfect fitment.
| Parameter | Specification | Test Method |
|---|---|---|
| Material Composition | 100% Carbon Fiber | ASTM D3171 |
| Weave Pattern | 3K 2×2 Twill | Visual Inspection |
| Available Thickness | 1mm-20mm (±0.05mm) | Digital Caliper |
| Panel Size Options | 1000×500mm, 1200×600mm | ISO 2768-1 |
| Density | 1.55 g/cm³ | ASTM D792 |
| Tensile Strength | 500 MPa | ASTM D3039 |
| Tensile Modulus | 70 GPa | ASTM D3039 |
| Flexural Strength | 600 MPa | ASTM D790 |
| Flexural Modulus | 60 GPa | ASTM D790 |
| Compression Strength | 350 MPa | ASTM D6641 |
| Surface Finish | Glossy/Matte | Visual Inspection |
| Temperature Resistance | -60°C to +180°C | ASTM E831 |
| Thermal Conductivity | 5 W/m·K | ASTM E1461 |
| Electrical Conductivity | 10⁴ S/m | ASTM D257 |
| Moisture Absorption | <0.5% | ASTM D570 |
