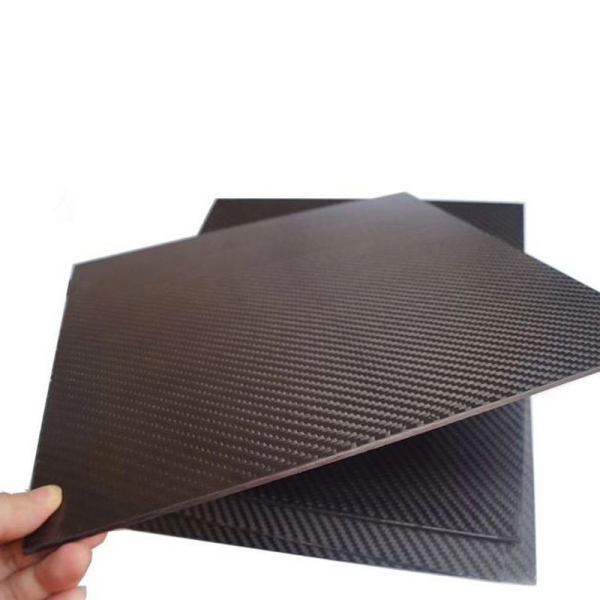

These innovative conductive carbon fiber sheets provide exceptional EMI/RFI shielding performance while maintaining the lightweight properties of carbon fiber. The unique fiber architecture creates a continuous conductive network with metallic-level conductivity, perfect for electronics enclosures, satellite components, and medical imaging equipment. The sheets can replace traditional metal shielding with 70% weight savings while providing superior corrosion resistance. Optional pressure-sensitive adhesive backing allows for easy installation in tight spaces. Complete EMC test reports available upon request.
| Parameter | Specification | Test Method |
|---|---|---|
| Surface Resistivity | <1 Ω/sq | ASTM D257 |
| Shielding Effectiveness | 60dB @ 1GHz | MIL-STD-285 |
| Thermal Conductivity | 120 W/m·K | ASTM E1461 |
| Peel Strength | 1.5 N/mm | ASTM D903 |
| Compression Set | <5% | ASTM D395 |

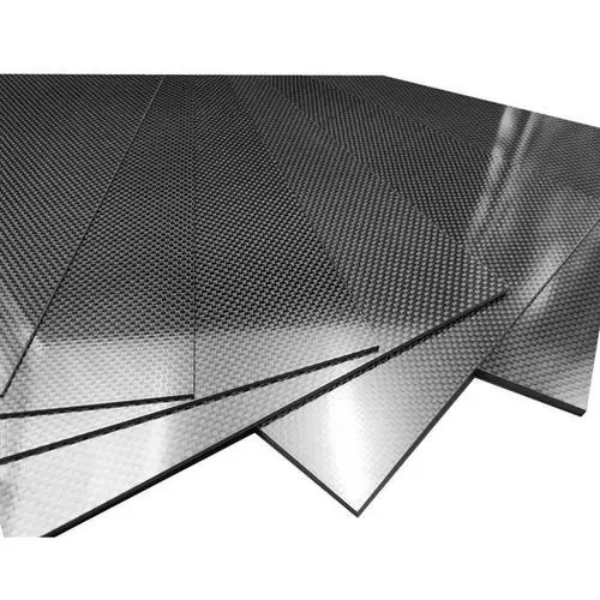

Engineered for maximum stiffness, these ultra-high modulus carbon fiber plates feature aerospace-grade M60J fibers with exceptional dimensional stability. The unidirectional fiber orientation delivers unparalleled strength in the primary load direction while maintaining minimal thermal expansion. Perfect for precision instruments, optical platforms, and high-performance automotive components where rigidity is critical. Each plate undergoes ultrasonic inspection to ensure perfect fiber alignment and void-free construction.
