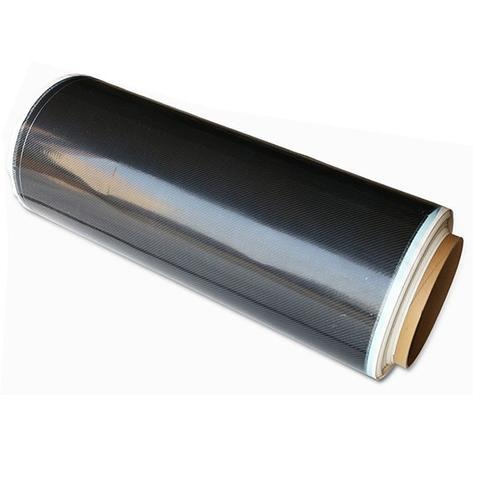

Carbon Fiber Woven Prepreg Fabric

Resin Type: Modified Epoxy

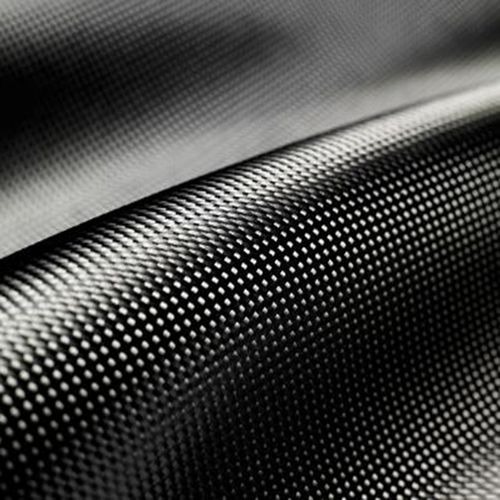

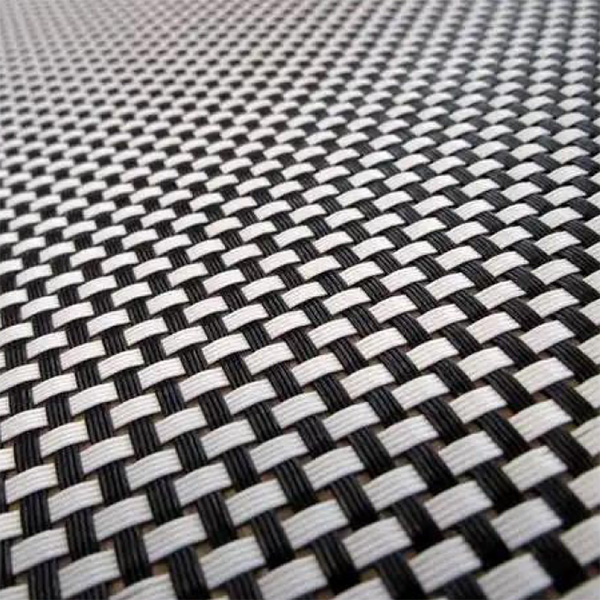

Weave Type: Plain/ Twil/Satin

Areal Weight: 200-600 g/m2 (Customizable)

Resin Content: 40土3%

Curing Conditions: 120-150° C/1-3h (Adjustable based on resin formulation)

Mechanical Properties:

Interlaminar Shear Strength: ≥60MPa

Flexural Strength: 21200 MPa

Made from reinforcing materials such as carbon fiber,aramid fiber, or glass fiber pre-impregnated with epoxy/phenolic resin, this fabric features high adhesion, low porosity, and excellent mechanical properties. It can be directly formed via hot press molding. The product is widely used in aerospace structural components, lightweight automotive parts, high-end sports equipment, wind turbine blades, industrial molds, and other fields.
